HERON SERIES

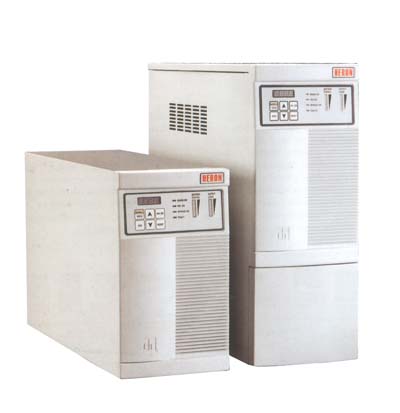

HN Series 1 to 3 KVA UPS
TECHNICAL SPECIFICATION ::
A Synthesis of the Best Technologies
- True Online Double Conversion design philosophy
- Perfected & proven design to work in extreme power conditions with utmost reliability & performance
- High efficiency, Low running cost (24 x 7 operation )
Power Friendly
- State-of-the-Art PWM rectifier with inbuilt APFC™
- Near unity power factor
- Controlled input harmonic level
- Wide input voltage window
Robust charger, longer backups
- Robust battery charger to charge the batteries quickly for longer backup duration
- Advance battery managemet
Superior Output power Quality
- Dual Microprocessor controlled
- Low distortion output even on full non-linear loads
- Superior static & dynamic regulation
- IGBT based Inverter, a synthesis of best technology
High Reliablity
- Designed & Manufactured in accordance with ISO 9001 : 2000
- Complied with testing standard IEC 62040 Part III
Easy Maintenance
- Automatic bypass
- Hot swappable batteries
Advance Communication Interface
- Fiexibility at an interface level
- UPSMON II* software solution for Data, Event Monitoring
- Auto shut down from remote places
- SNMP compliant*
- BMS compliat*
- Easy to install
- Compact size with user friendly digital display
Well Protected
- Protected against abnormal input conditions
- Protects load adequately against short circuit, overloads, over / under voltages
Compliance to International standards
- Comlied to International Standard on EMC / EMI * (optional)
| SPECIFICATION |
| INPUT VOLTAGE |
230 V (150 - 280 VAC) Single Phase |
| INPUT POWER FACTOR |
Near Unity |
| BATTERY VOLTAGE |
48 V DC |
| OUTPUT POWER |
HN 11 - 1 KVA ; HN 21 - 2 KVA ; HN 31 - 3 KVA |
| OUTPUT VOLTAGE |
230 V (+/- 1%) Single phase |
| OUTPUT FREQUENCY |
50 Hz nominal (mains synchronised) |
| TOTAL HARMONIC DISTORTION |
< 1.5% on linear load, < 3% on 100% non-linear load |
| EFFICIENCY ( AC TO DC) |
> 90 % |
| TRANSIENT RESPONSE |
For step load change of to 100% output will remain within +/- 5% and recover to 98% within 1 cycle |
| OVERLOAD CARACITY |
With time inverse characteristics |
| ACOUSTIC NOISE LEVEL |
< 50 dbA |
| COMMUNICATIONS INTERFACE |
DB9, RS 232 |
| AUTOMATIC BYPASS FACILITY |
Provided |
| COOLING |
Forced Ari Cooling |
| AMBIENT TEMP |
0 to 45° C |
| RELATIVE HUMIDITY |
Up to 95% Rh, Non condensing |
| PANEL DIMENSIONS |
HN 11 W 170 x D 500 x H 300 mm
HN 21 / 31 W 170 x D 500 x H 450 mm |
| WEIGHT |
HN 11 (12 kg) ; HN 21 ( 20 kg) ; HN 31 (25 kg) |
