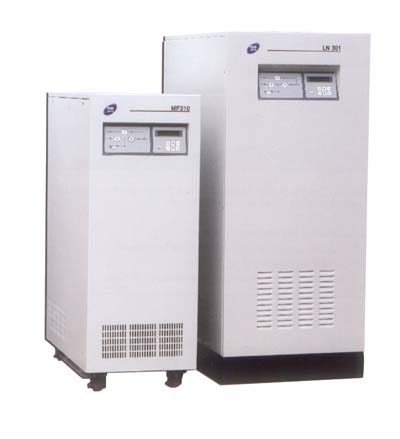

LN & MF series 10 to 30 KVA UPS
MODEL
LN 101
LN 151
LN 201
LN 301 |
MF 310
MF 320
MF 330 |
| Single Phase Output |
Three Phase Output |
TECHNICAL SPECIFICATION ::
INPUT
| Design Philosophy |
Advanced controlled rectifier with SMPS charger converter |
| Nominal Voltage |
415 V AC, (-20 % to +15 % ) 3 Phase & Neutral |
| Nominal Frequency |
50 Hz (± 6%) |
| Input Power Factor |
> 0.93 |
OUTPUT
| Inverter Design Philosophy |
IGBT based PWM with Instantaneous Sinewave, Micro Processor control |
| Nominal Voltage |
220 / 230 / 240 V AC, 1 Phase (step less Adjustable) |
400 / 415 V AC, 3 Phase & N (step less Adjustable) |
| Regulation |
=< 1% |
=< 1% for balanced load |
| Phase Displacement |
|
=< 2% for 100% unbalanced load
=< 1° for balanced load
=< 2° for 100% unbalanced load |
| Frequency |
50 Hz (0.25 Hz) in free running mode, (± 3 Hz) in synchronous mode |
| Waveform |
True Sinewave |
| Total Harmonic Distortion |
< 2% max on linear load & < 5% on non-linear load |
| Crest Factor |
3 : 1 |
| Overload Capacity |
125% for 10 Min ; 150% for 60 Sec. |
Dynamic Response Duty |
For 0 to 100% step load change the output shall remain within ± 5% & recover to ± 2% within one cycle Continuous |
ENVIRONMENT
| Acoustic Noise Level |
< 62 db @ 1.5 meter |
| Ambient Temperature |
0 to 45° C |
| Storage Temperature |
-10 to 70° C |
| Humidity |
Upto 95% RH, Non Condensing |
| Altitude |
< 1000 meter above sea level ( without derating) |
PHYSICAL
| Enclosure Protection Grade |
IP - 20 |
| Cooling |
Forced Air |
| Colour |
RAL 7035 (Hawells Gray) |
| Cable Entry |
Bottom & Rear |
| TESTING STANDARDS |
IEC 62040- Part III |
| MODEL |
LN 101 |
LN 151 |
LN 201 |
LN 301 |
MF 310 |
MF 320 |
MF 330 |
| KVA/KW |
10 / 8 |
15 / 12 |
20 / 16 |
30 / 24 |
10 / 8 |
20 / 16 |
30 / 24 |
| Acoustic Noise |
240 |
240 |
300 |
360 |
240 |
300 |
360 |
| Efficiency (DC to AC) |
> 90% |
> 90% |
> 91% |
> 92% |
> 90% |
> 91% |
> 92% |
| DIMENTSIONS (in mm)
|
| Width |
400 |
400 |
550 |
550 |
400 |
550 |
550 |
| Depth |
800 |
800 |
900 |
900 |
800 |
900 |
900 |
| Height |
1000 |
1000 |
1200 |
1200 |
1000 |
1200 |
1200 |
| Weight (in KG) |
200 |
250 |
300 |
400 |
250 |
375 |
500 |
