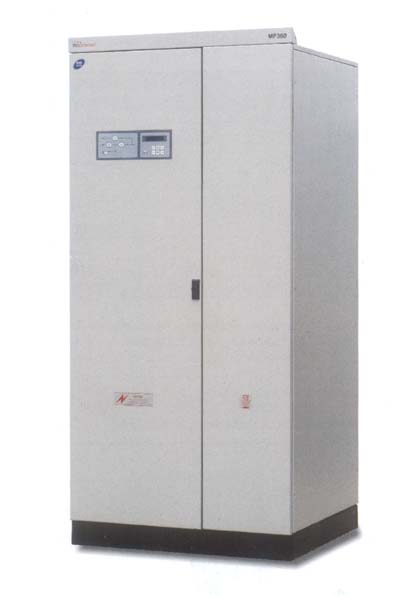

MF & IM series 40 to 200 KVA UPS
MODEL
MF 140
MF 150
MF 160
IM 180
IM 1100
IM 1120 |
MF 340
MF 350
MF 360
IM 380
IM IM 3100
IM 3120
IM 3150
IM 3200 |
| Single Phase Output |
Three Phase Output |
TECHNICAL SPECIFICATION ::
INPUT
| Design Philosophy |
Advanced controlled rectifier with SMPS charger converter |
| Nominal Voltage |
415 V AC, (-20 % to +15 % ) Phase & Neutral |
| Nominal Frequency |
50 Hz (± 6%) |
| Input Power Factor |
> 0.93 |
| BATTERY VOLTAGE |
360 V DC |
OUTPUT
| Inverter Design Philosophy |
IGBT based PWM with Instantaneous Sinewave, Micro Processor control |
| Nominal Voltage |
220 / 230 / 240 V AC, 1 Phase (stepless Adjustable) |
400 / 415 V AC, 3 Phase & N (stepless Adjustable) |
| Regulation |
=< 1% |
=< 1% for balanced load |
| Phase Displacement |
- |
=< 2% for 100% unbalanced load
=< 1° for balanced load
=< 2° for 100% unbalanced load |
| Frequency |
50 Hz ( ± 0.25 Hz) in free running mode, (± 3 Hz) in synchronous mode, |
| Waveform |
True Sinewave |
| Total Harmonic Distortion |
< 2% max on linear load & < 5% on non-linear load |
| Crest Factor |
3 : 1 |
| Overload Capacity |
125% for 10 Min ; 150% for 60 Sec. |
Dynamic ResponseDuty |
For 0 to 100% step load change the output shall remain within ± 5% & recover to ± 2% within one cycle Continuous |
ENVIRONMENT
| Ambient Temperature |
0 to 45° C |
| Storage Temperature |
-10 to 70° C |
| Humidity |
Upto 95% RH, Non Condensing |
| Altitude |
< 1000 meter above sea level ( without derating) |
PHYSICAL
| Enclosure Protection Grade |
IP - 40 |
| Cooling |
Forced Air |
| Colour |
RAL 7032 (Siemens Gray) |
| Cable Entry |
Bottom & Front |
| TESTING STANDARDS |
IEC 62040- Part III |
| MODEL |
MF 140 / MF 340 |
MF 150 / MF 350 |
MF 160 / MF 360 |
IM 180 / IM 380 |
IM 1100 / IM3100 |
IM 1120 / IM 3120 |
IM 3150 |
IM 3200 |
| KVA/KW |
40 / 32 |
50 / 40 |
60 / 48 |
80 / 64 |
100 / 80 |
120 / 96 |
150 / 120 |
200 / 160 |
| Acoustic Noise |
< 68 db A |
< 68 db A |
< 68 db A |
< 70 db A |
< 70 db A |
< 72 db A |
< 72 db A |
< 72 db A |
| Efficiency (DC to AC) |
> 93% |
> 93% |
> 94% |
> 94% |
> 94% |
> 94% |
> 94% |
> 94% |
| Overall Efficiency (AC to AC) |
> 91% |
> 91% |
> 92% |
> 92% |
> 92% |
> 92% |
> 92% |
> 92% |
| DIMENTSIONS (in mm)
|
| Width |
900 |
900 |
900 |
1200 |
1200 |
600+1000 |
600+1000 |
600+1000 |
| Depth |
800 |
800 |
800 |
800 |
800 |
900 |
900 |
900 |
| Height |
1800+160 |
1800+160 |
1800+160 |
1800+160 |
1800+160 |
1800+160 |
1800+160 |
1800+160 |
| Weight (in KG) |
700 |
800 |
850 |
1000 |
1200 |
1400 |
1500 |
1600 |
